Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency

  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
Lieu d'origine Chine
Nom de marque Trancar Industries
Certification CE/ISO
Numéro de modèle TCM-D
Quantité de commande min 1 ensemble
Prix USD 9000-5000 Dollar per set
Détails d'emballage Boîtes en contreplaqué/boîtes en carton
Délai de livraison 35 jours de travail
Conditions de paiement LC, D/A, D/P, T/T, Western Union
Capacité d'approvisionnement 20 séries par mois

Contactez-moi pour des échantillons gratuits et des coupons.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Nom du produit machine de polissage semi-automatique d'extrémité de tête de plat Dimension Pour les pièces de rechange
Poids 2500 kg Tension 380V 400V 415V etc. 50Hz/60Hz
Option de couleur Bleu/jaune/rouge/gris Usage Nettoyage des surfaces d'acier, élimination de la rouille, amélioration de la surface des miroirs
Condition 100% nouveau Système de contrôle Autres appareils pour la fabrication de lampes et de lampes
Efficacité de polissage 8 à 12 m2 par heure Garantie 18 mois
Service après-vente Assistance technique par vidéo/Assistance en ligne/Ingénieur à l'étranger Fournir ODM & OEM
Mettre en évidence

3500x1600x3050mm Dished End Polishing Machine

,

2500 kg Semi-automatic Polishing Machine

,

8-12m2 per Hour Tank Head Polishing Machine
Laisser un message
Description de produit
Semi-automatic Polishing Machine for Dish Head End

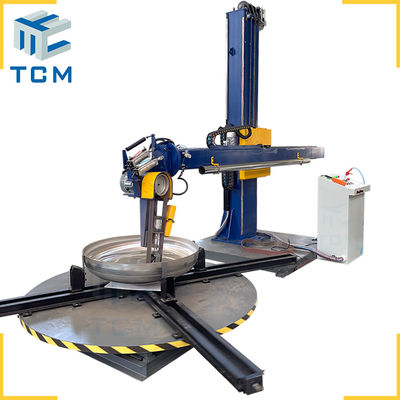

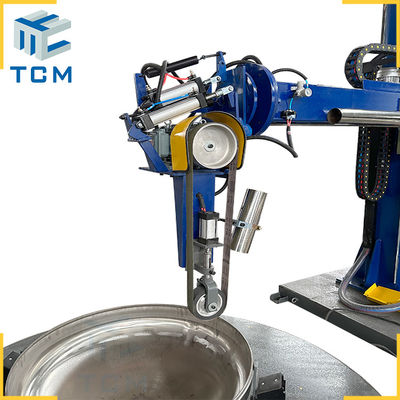

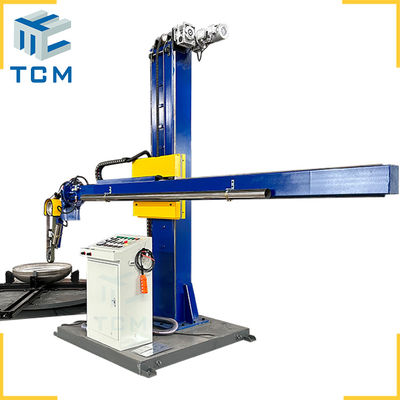

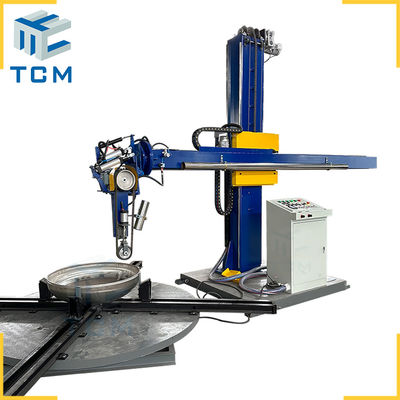

TCM-D column and boom manipulator automatic surface grinding machine is designed for steel metal tank ends, dish heads, tank caps/bottoms/cones inner and outer surface polishing and buffing.
This model is primarily used for surface polishing of stainless steel, metal, aluminum, and copper dished ends, tank heads, and cylinder heads. It can also be used for vertical tank surface grinding.
The TCM-D automatic polishing machine is suitable for various standard head polishing applications including conical head polishing, spherical head surface polishing, dish head polishing, special heads polishing, and stainless steel oval head inside/outside surface grinding. It's widely used in pharmaceutical, medical, food & beverage, water purification, pressure vessel, cosmetic, wastewater treatment, semiconductor, and photovoltaic industries.
Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 0
Technical Specifications
Parameter Details
Available Polishing Workpiece Size Inside & outside diameter: 450~5000mm
Turntable Max Loading Capacity 1 Ton / 2 Ton /5 Ton / 10 Ton (option or custom design 15 Ton, 20 Ton)
Polishing Precision Surface roughness(Ra) ≤0.25μm
Production Efficiency 6~12 m²/hour
Total Dimension Machine: 3500×1600×3080mm
Column: 300×400×8mm
Beam: 150×200×6mm
Input Total Power 12 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Color Grey/Green/Blue/Red/Yellow (Custom design available)
Machine Weight 2250kg
Suitable Polishing Material Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc)
Packaging and Delivery
  • Plywood case + PE Film + Carton protection
  • Custom packaging available based on order requirements
Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 1 Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 2 Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 3 Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 4

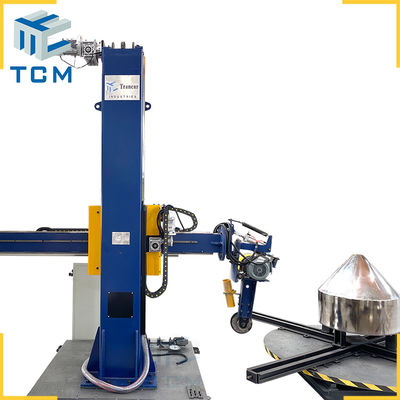

Trancar Automatic Polishing Machine in Client's Workshop
Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 5
